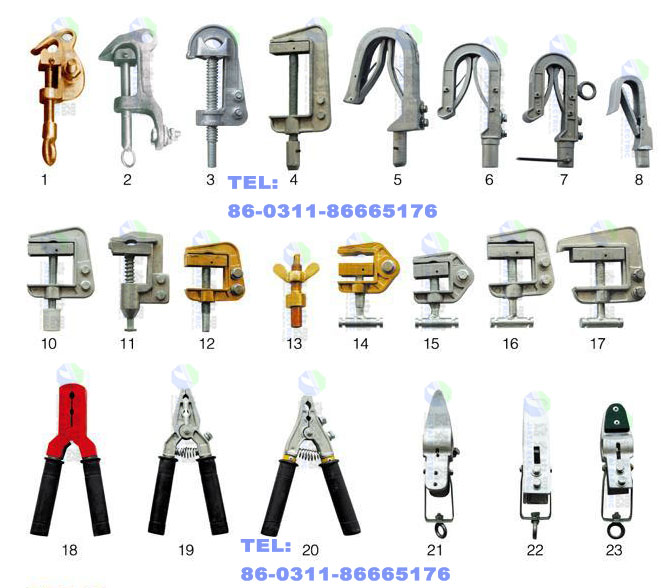

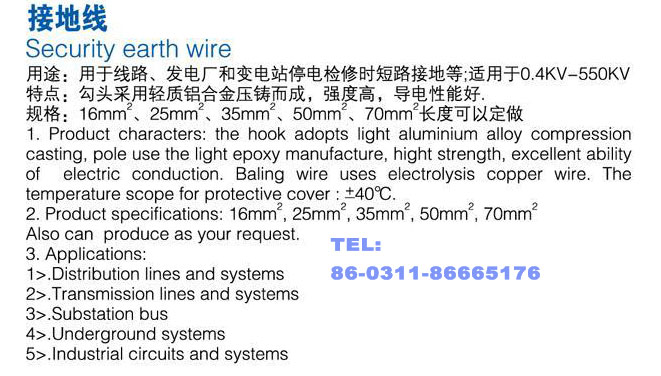

Clamp: Superior alluminium alloy

Pole Material: light epoxy resin, ultra light, ultra high voltage, high stength

Specification: 16, 25, 35  square  millimeters

Product	Item	Cross-Section   Area	Length	configure	Usage area
Earth  Wire	JDX-400V	25mm2	4x1.5+12m	1m double reed needle hook
	JDX-10KV	25mm2	3x1+5m	0.5m hand busbar , ground clip	substation
	JDX-35KV	25mm2	3x2+8m	1m spiral hook ,ground clip	substation
	JDX-110KV	35mm2	3x6+6m	2m double reed hook, ground clip	substation
	JDX-220KV	35mm2	3x6+6m	3m double reed hook, ground clip	substation
	JDX-500KV	50mm2	1.5m/item x3item	Duckbill clamp, ground clip	Iron tower
	JDX-10KV	25mm2	3x1.5+10.5m	1m double reed hook ,ground nail	Wire route
	JDX-35KV	25mm2	3x2+18m	1m double reed hook ,ground nail	Wire route
	JDX-110KV	35mm2	1.5x3	Duckbill clamp, ground clip	Wire route
	JDX-220KV	35mm2	1.5x3	Duckbill clamp, ground clip	Wire route
	Note: length can made by your required  Barling wire uses electrolysis copper wire .the temperature scope for protective cover: ±40℃

Please contact us for more information.
